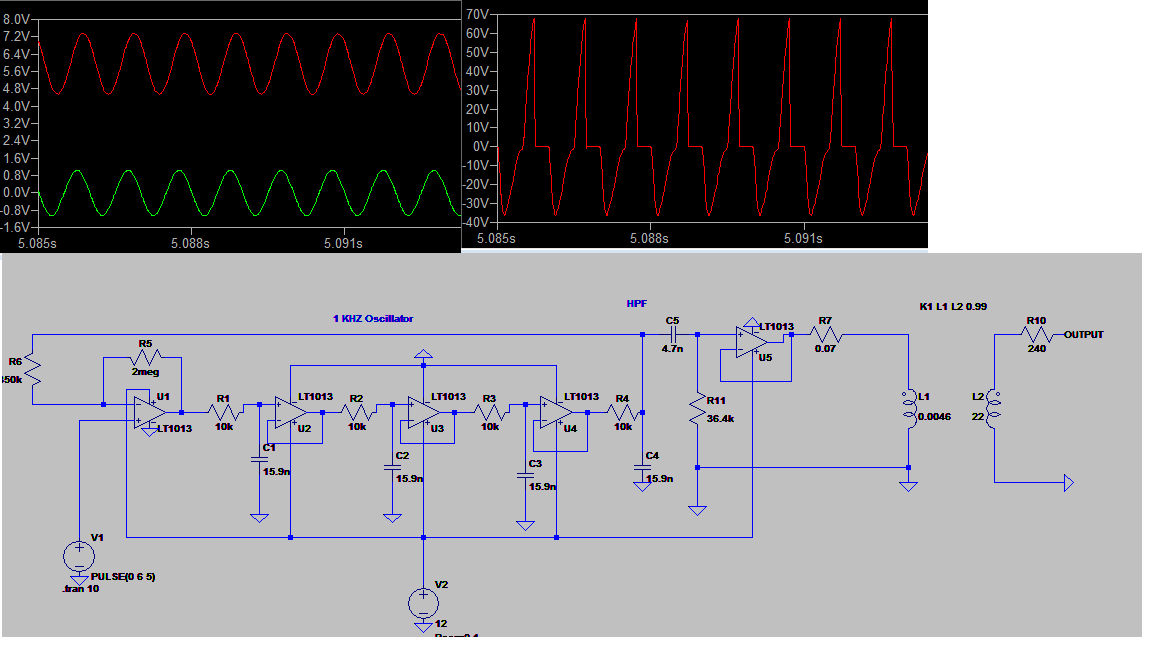

the gree waveform is the circuit output, the redwaveform is the signal after passing throush the HPF, the red is the transformer output
