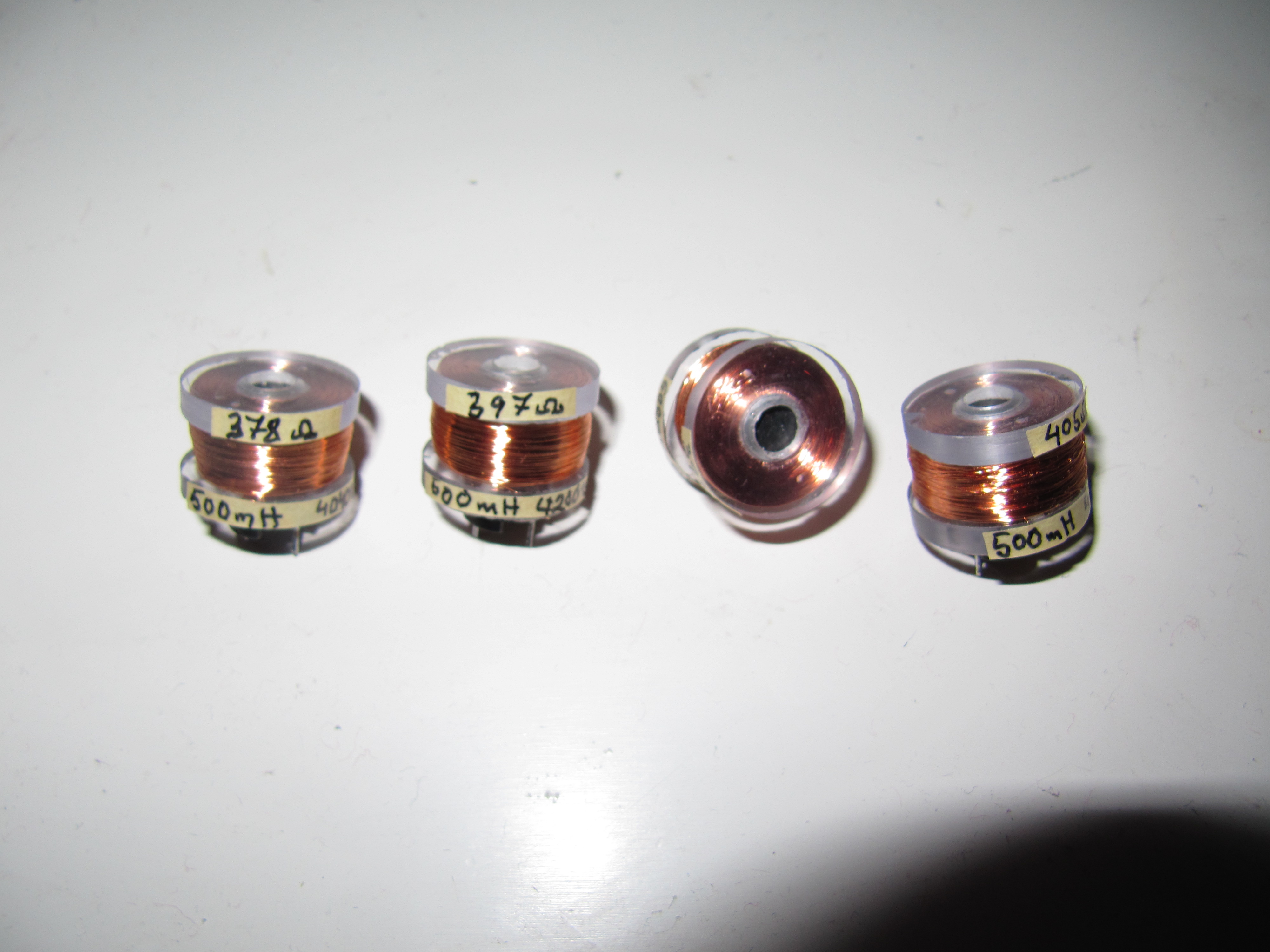

500mH inductors for a delay line-box

These inductors are made with a CNC winder and use 4200 turns of 0.1 mm diameter copper wire. Their about 22 mm diameter.
